Product Description

Description:

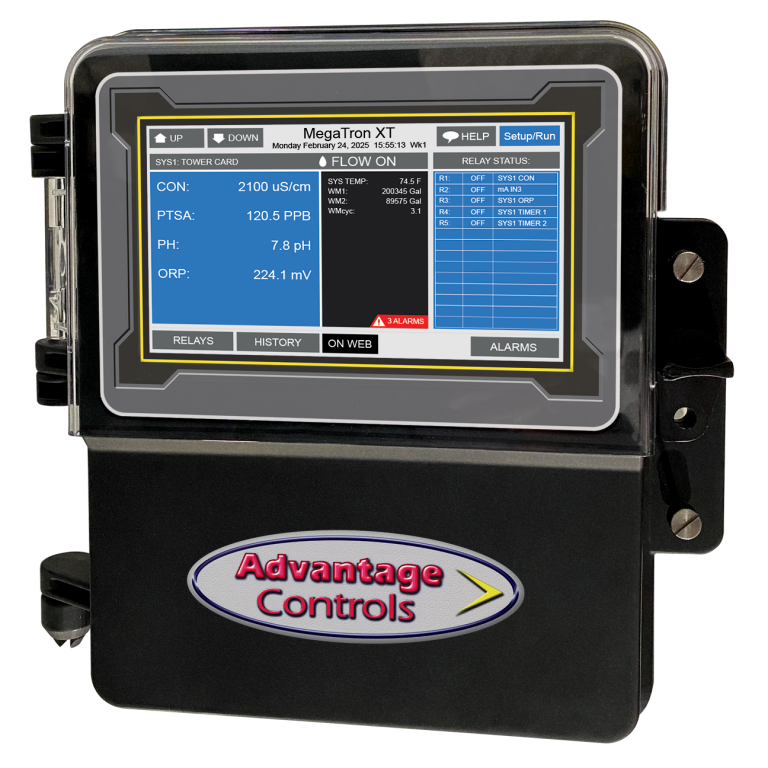

The MegaTron XT offers the widest range of features combined with WebAdvantage remote communications making it an exceptional choice for commercial and industrial water treatment systems.

Key Features:

• Single System Control
• BACnet, Modbus and Lonworks communications options
• Internet Communication
• Multi-Level Security
• USB History Access
• USB Configuration Cloning
• Simple Touchscreen Style Menu
• Everything Keypad Settable
• On Screen History Graphs
• Large Customizable Display
• Locking NEMA-4X style enclosure
• Hinged thumb screw panel for easy access to internal components
• Card slots for easy field upgrades

Applications:

The MegaTron XT touchscreen controller is the latest innovation in our highly acclaimed MegaTron product line.

Units can be configured to control a wide range of digital and analog inputs. Advanced relay logic and customization lets you configure a unit to meet your specific system needs.

XT touch units can control a single tower, boiler, wastewater or other industrial application and provide web based communications and reporting with WebAdvantage.

Functions:

• (1) system or (2) boilers
• Touch screen display
• (5) control relays
• Conductivity / pH / ORP
• Makeup conductivity
• Temperature
• Feed & flow control / monitoring
• (8) water meter inputs
• (8) 4-20 mA input signals
• (8) 4-20 mA output signals
• BACnet / MODBUS options
• Larger, easy access cabinet
